CATIA V5 Review

At first glance, CATIA’s visually-outdated interface makes it look like this software doesn’t offer much, but this software can give you some of the best design tools on the market.

Top Ten Reviews Verdict

CATIA is perfect for expert designers and professional engineering businesses, but the complicated interface and extremely high cost of this software make it a bad option for average users and small companies.


  • +

    CATIA offers some of the most powerful CAD tools on the market.


  • -

    It is one of the most expensive CAD programs on the market.

Why you can trust Top Ten Reviews Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

At first glance, CATIA’s visually-outdated interface makes it look like this software doesn’t offer much, but this software can give you some of the best design tools on the market. However, it is known as one of the most complex and most costly CAD programs, which is the reason it didn't score higher in our comparison, as we focused on finding programs best suited for budget-conscious users. This software is meant for experts in mechanical engineering and aerospace industries, because the tools are designed for creating components for engines, electrical parts, thermal power systems and hydro power systems.

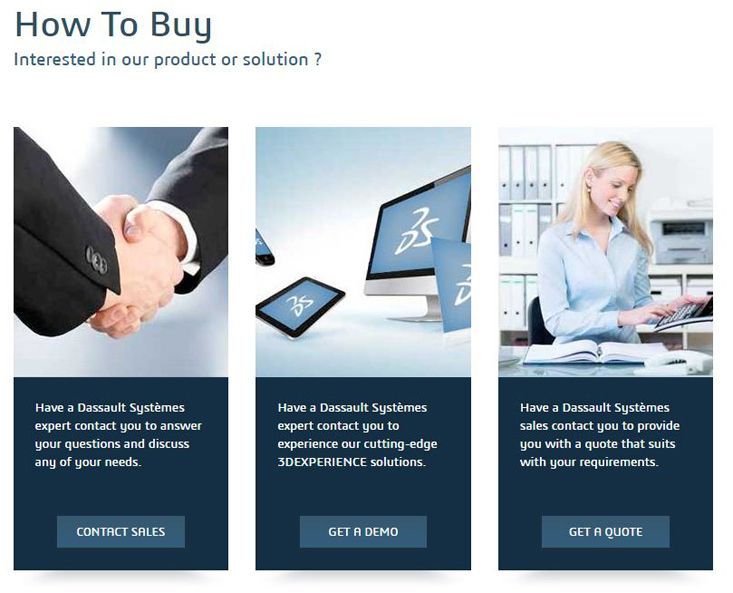

You will need to request a quote from Dassault Systèmes in order to know how much the software will cost you. The estimate will usually depend on the number of people who will be using the software and the type of work you plan on using it for. Most professional CAD software is expensive, but CATIA is known for being one of the most expensive options on the market. However, the large cost is partially due to the powerful tools and professional results this software offers. It is best suited for a large company that makes enough money to afford spending thousands of dollars a year on the program.

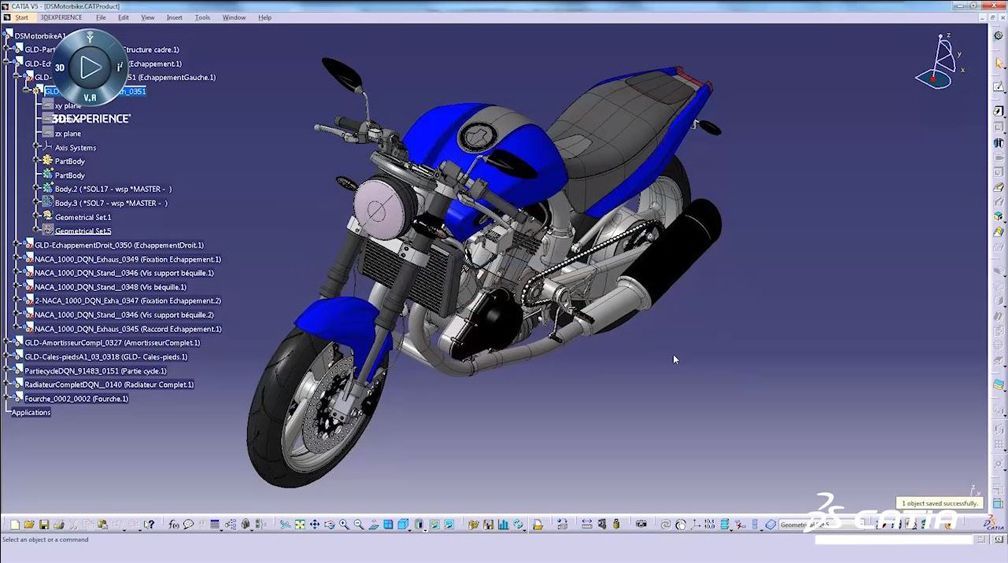

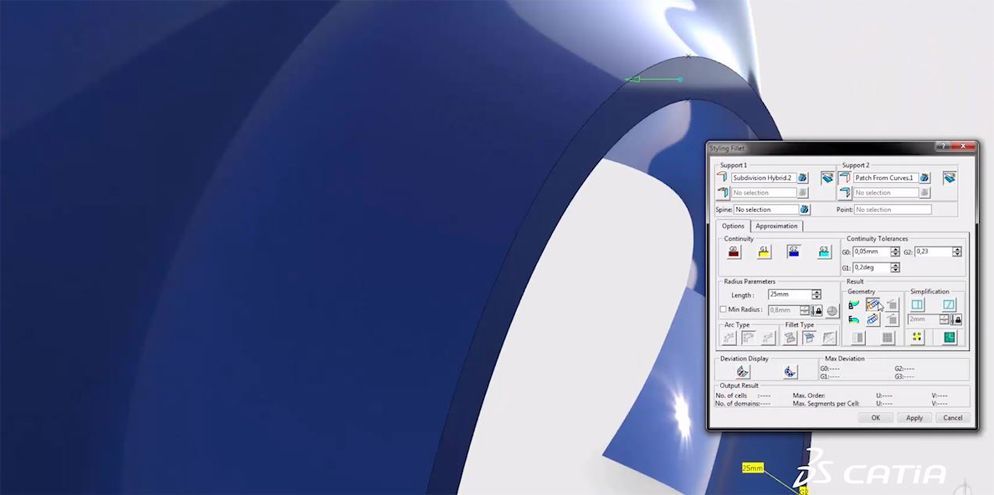

This software gives you plenty of design options, including advanced shape-modeling capabilities. You’ll be able to make blueprints, 3D models and fully realized photorealistic renderings. You can also add material textures to your shapes, and there are controlled lighting options. Additionally, you can adjust the transparency of various parts, which can make it easier for you to view and edit sections of your designs. This program works especially well when working on large and complex projects like airplane engines.

CATIA’s editing tools allow you to view your various layers and edit them. You can turn the snap tool on and off or choose to only have one snap location active to create a uniform and accurate design.

This program lets you create 3D models from 2D designs, which is helpful if you import a document into the program. It also lets you create 2D images from your 3D designs, which will be helpful when creating blueprints or annotating sections of your designs.

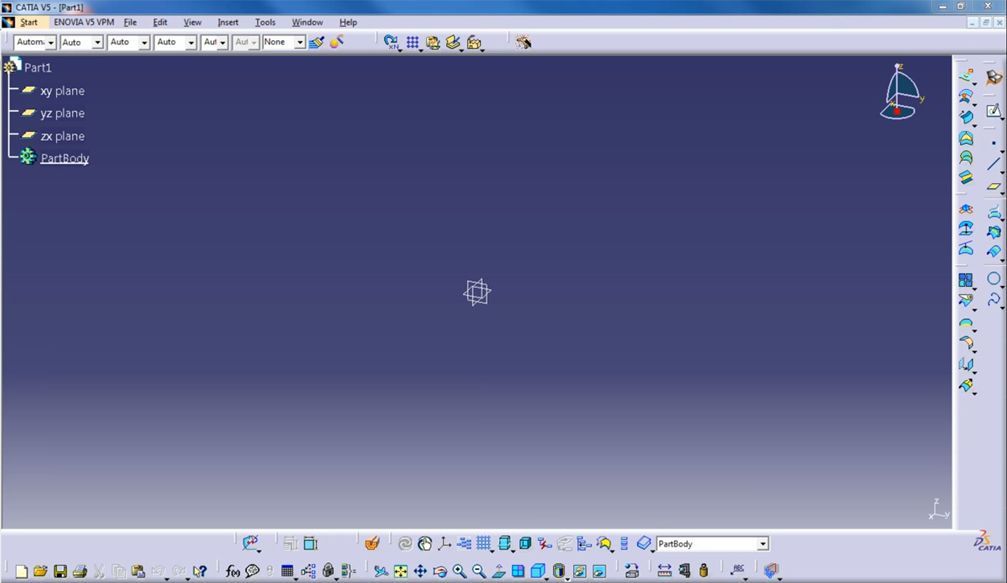

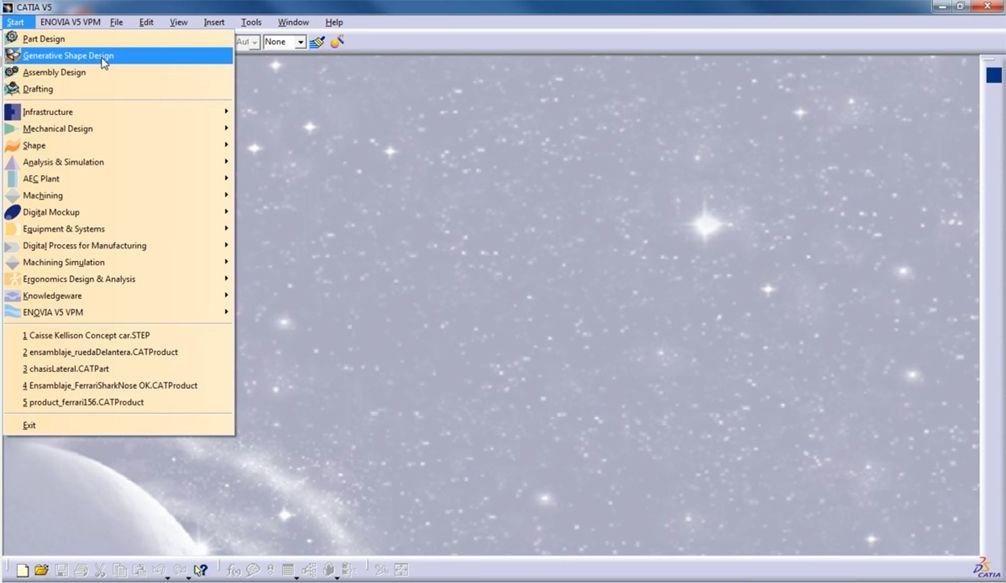

There are myriad commands in this software, so you’ll have a lot of control over your creations. Unfortunately, the interface and tools aren’t very intuitive when compared to other software. It takes time to work out all the options, so plan on spending a good deal of time learning and training on the software.

You can rearrange your tool pallets to make the software a little easier to use. The program also allows you to create macros to make your workflow smoother by consolidating a group of frequently used actions into a single command.

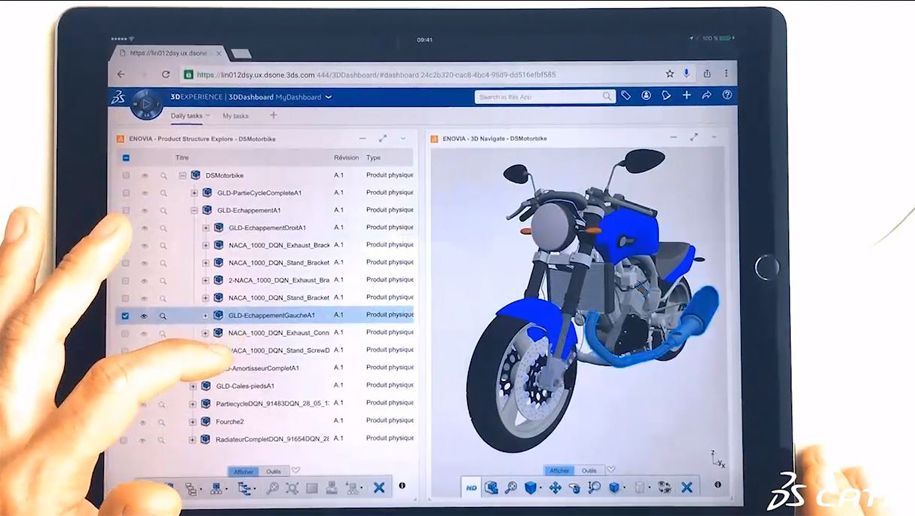

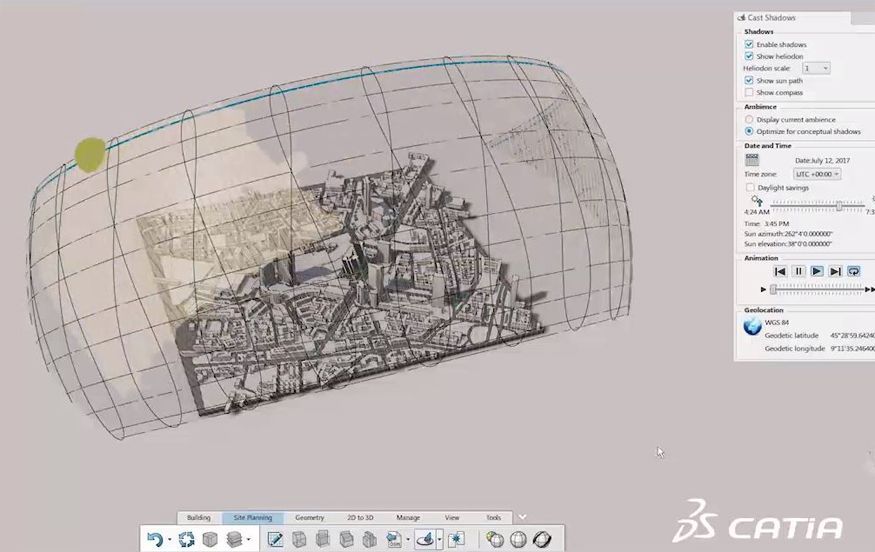

Like most other programs we evaluated, this one features drag and drop capabilities so you can rearrange and select various elements with ease. This software is also used for architecture, offering wall tools to help you create building plans quickly.

CATIA works with DWF, PDF, STEP, STL and image files among others, so you will be able to 3D print your designs as well as import and export in various formats.

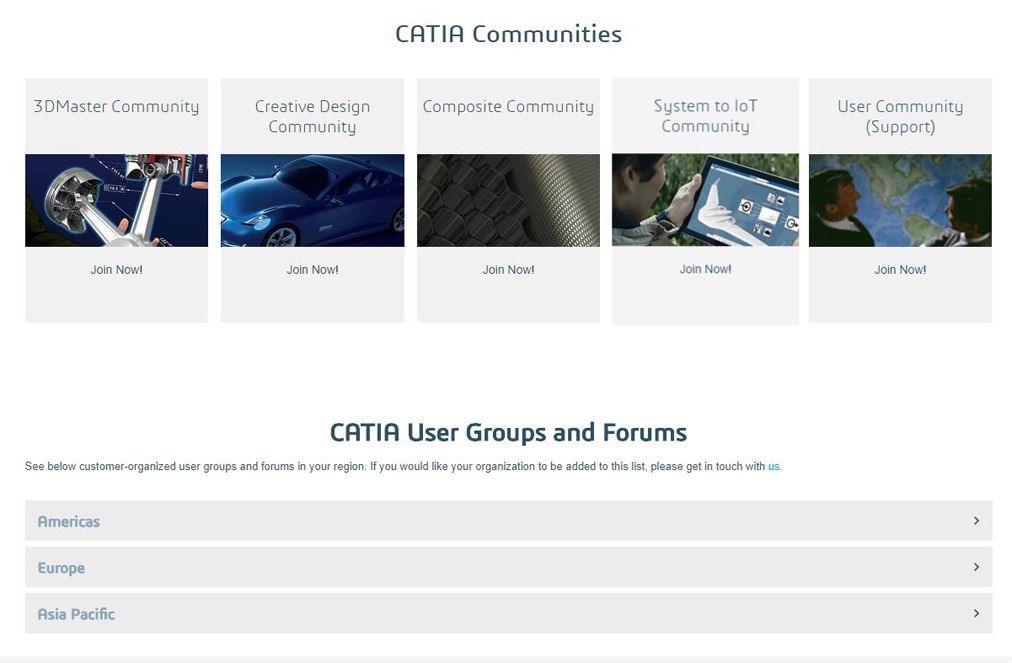

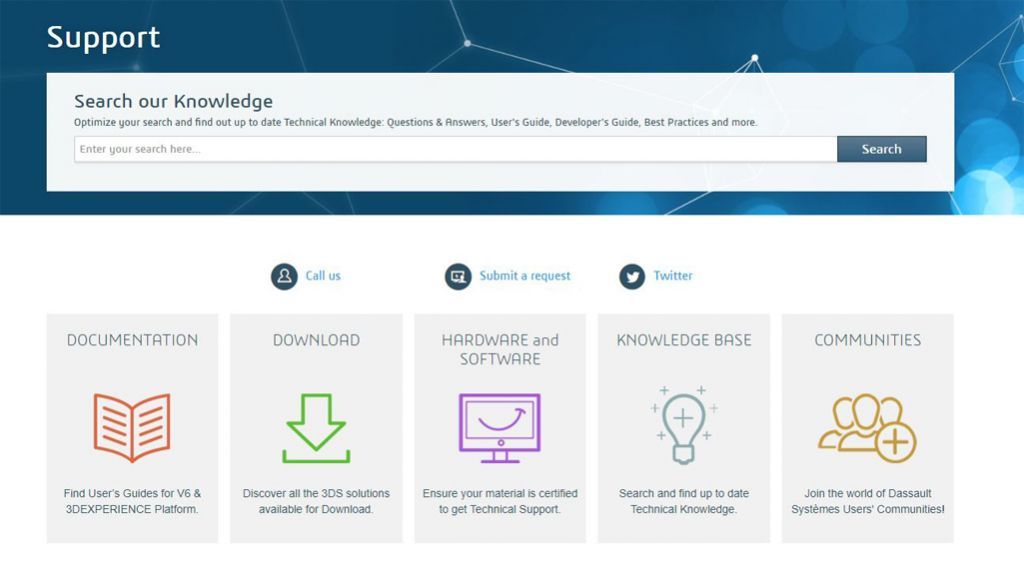

The company offers a free 30-day trial so you can test out the software before deciding if you want to purchase it. Should you need help, you can contact the company by phone or email, as official technical support is available 24/7. There is also a helpful knowledgebase with tutorials and a community forum on the company’s website. We found plenty of unofficial tutorials on YouTube, so some assistance with techniques and features can be learned from other users. Mac users will need to find another program, like ZWCAD, since this one only works on Windows.

CATIA is a powerful program that can help you design 3D components, architectural designs and blue prints. It gives you access to plenty of materials and lighting options including photorealistic rendering so your designs can look professional and can help your customers visualize your designs better. This software isn’t the easiest to use and is one of the costliest on the market, which is why it scored so low in our comparison. However, it is a well-known tool that engineers, designers and architects frequently employ.
